Managing multiple VPCs and network connections in AWS often becomes an exercise in complexity. Each link requires independent configuration, constant monitoring, and ongoing updates, tasks that quickly multiply. AWS Transit Gateway mitigates that load by serving as a unified routing hub, letting you replace a sprawling mesh of point-to-point connections with a streamlined hub-and-spoke model.
Once Transit Gateway is in place, your VPCs, on-premises data centers, and AWS services connect to a single logical gateway. Rather than provisioning a new peering or VPN link for every new network, you attach the new endpoint to the gateway, and the service automatically handles all the packet forwarding and routing policies.
In this article, I will outline the principal advantages of AWS Transit Gateway, detail its pricing structure, and highlight practical scenarios that demonstrate its ability to enhance your cloud networking approach. Whether your estate consists of a small set of VPCs or spans a complex, multi-region architecture, Transit Gateway can simplify your design and free you from repetitive maintenance. Let’s explore the technical details.
What is AWS Transit Gateway?
AWS Transit Gateway is a managed regional routing service that interconnects a variety of network domains through a single virtual router. Conceptually, it functions like a major airport hub: individual VPCs, on-premises locations, and AWS services all attach to the gateway as spokes, allowing data to move between any two spokes without requiring direct and redundant paths.
Operating at Layer 3, the mechanism forwards both IPv4 and IPv6 packets by evaluating their destination IP addresses. This hub-and-spoke architecture supersedes the cumbersome paradigm of multiple VPC peering, whereby each VPC was obliged to maintain independent links to every other VPC. Take the case of five VPCs: the complete mesh would necessitate ten distinct peering connections, whereas the Transit Gateway condenses this requirement to a single attachment per VPC.
With a capacity to accommodate 5,000 VPC attachments, the Transit Gateway is engineered for extensive network growth. It further tolerates overlapping IP address spaces, thereby enhancing overall architectural latitude.
Key Benefits of AWS Transit Gateway
Simplified Network Management
When your architecture grows to include many VPCs, the proliferation of individual VPC peering connections can become unmanageable. AWS Transit Gateway collapses these numerous connections into a unified hub, dramatically lowering the burden of administration. Permission sets and monitoring tools support a single pane of glass, reducing the time and complexity of adding or modifying associations across VPCs, on-premises sites, and VPN connections.
Centralized route tables allow you to specify and modify routing policies once, propagating those rules to all attached segments. This approach minimizes the risk of configuration drift, ensures consistent application of policies, and accelerates troubleshooting by localizing routing concerns within the Transit Gateway rather than in distributed VPC route tables.
Massive Scalability
VPC peering imposes a limit of 125 simultaneous connections, which can quickly constrain even modestly sized organizations. AWS Transit Gateway alleviates this limitation by supporting up to 5,000 VPC attachments per region, thereby accommodating the requirements of the largest enterprises.
The service is designed to grow seamlessly: as traffic patterns intensify, Transit Gateway automatically provisions additional capacity to handle increased packet rates. This elastic scaling operates in the background, preventing performance degradation and relieving operators of manual capacity planning.
Enhanced Security and Control
Centralized management of network traffic enhances security by confining policy enforcement to a single locus. Fine-grained route table associations govern which attached networks can exchange data, enabling granular network segmentation. Combined with AWS IAM, these controls facilitate the principle of least privilege for cross-VPC communication, reducing the attack surface while maintaining operational flexibility.
AWS Network Firewall integration with the Transit Gateway permits unified security inspection of traffic transiting the hub, thereby alleviating the operational overhead of provisioning redundant inspection appliances in each individual VPC.
Multi-Account and Multi-Region Support
AWS Transit Gateway natively supports segmentation across AWS Organizations, thereby simplifying network interconnection within federated organizational constructs. The AWS Resource Access Manager permits a single Transit Gateway to be shared across accounts, enforcing access policies consistent with enterprise governance.
By employing inter-region peering, distinct Transit Gateways in different AWS Regions can be linked via the AWS Global Network. Transit traffic between Regions traverses the AWS backbone and is automatically encrypted between AWS data centers, meeting inter-region security compliance without additional cryptographic overhead.
How AWS Transit Gateway Works
(Image Source: AWS)
Route Tables and Traffic Flow
AWS Transit Gateway employs route tables to govern the decision-making process for packet forwarding. Each connected attachment, whether a VPC, VPN, or Direct Connect endpoint, links to a singular route table, which contains a combination of static and dynamic routes directing packets to the corresponding next-hop attachment identified by the destination IPv4 or IPv6 address.
Route propagation mechanisms enable VPCs, VPN tunnels, and Direct Connect gateways to automatically inject their advertised routes into the Transit Gateway route tables. This capability of dynamic route advertisement minimizes the administrative burden of manual updates and facilitates seamless adaptation to changes in the topology or address space.
Equal Cost Multi-Path Routing
Transit Gateway implements Equal Cost Multi Path routing to provide both redundancy and load balancing across VPN and Direct Connect connections. When multiple equal-cost paths exist to a single destination prefix, the gateway distributes packets in a round-robin manner, thereby enhancing throughput and fault tolerance.
ECMP routing proves especially beneficial in hybrid cloud deployments that necessitate multiple redundancy paths between AWS regions and on-premises data centers. This functionality ensures that a failover path is immediately ready should the primary connection fail while simultaneously optimizing the aggregate throughput of the hybrid architecture.
Network Security Integration
AWS Transit Gateway seamlessly integrates with multiple AWS security services to deliver layered network protection:
AWS Network Firewall: Offers centralized, managed firewall capability across both north-south and east-west traffic flows.
AWS PrivateLink: Secure connectivity to AWS services while completely eliminating exposure to the public Internet.
VPC Security Groups and NACLs: Retain their role as layered security defenses, providing instance-level and subnet-level filtering as necessary.
Pricing Model and Cost Considerations

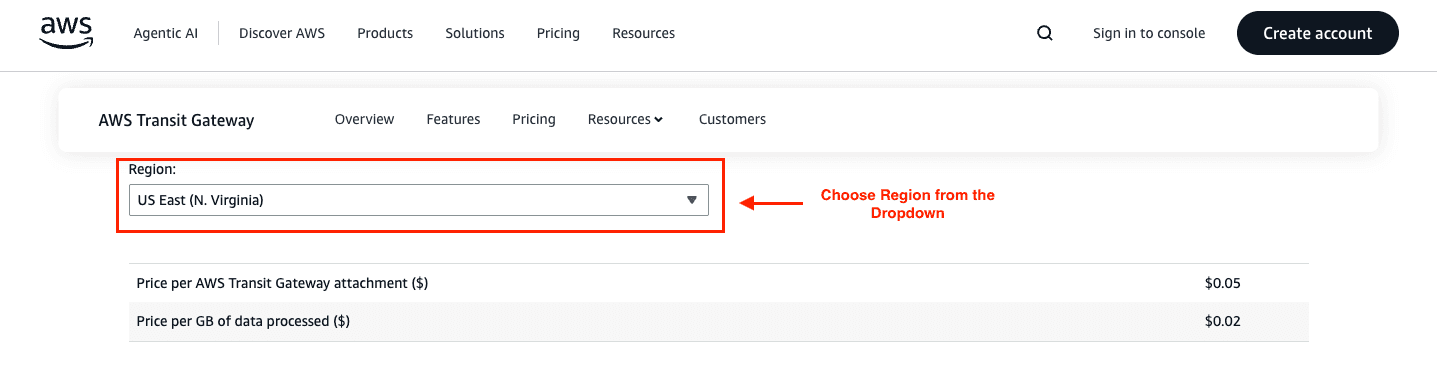

Costs for AWS Transit Gateway derive from three primary components:
Attachment Charges: An hourly charge of $0.05 for every resource linked to the Transit Gateway is incurred. Charges commence when an attachment is activated and cease upon removal. Costs for VPC attachments are borne by the VPC owner, whereas the owner of the Transit Gateway assumes the cost of VPN and AWS Connect attachments.
Data Processing Charges: A charge of $0.02 per GB is billed for data forwarded from VPCs, AWS Direct Connect, VPN tunnels, or Network Firewall flows to the Transit Gateway. The sender of the traffic incurs these costs.
Standard Data Transfer: Existing AWS data transfer pricing governs traffic that exits the AWS Cloud or traverses Availability Zones and is billed in conjunction with Transit Gateway costs.
Cost Comparison with Alternatives
When connecting two VPCs with a straightforward, bi-directional link, VPC peering usually incurs a lower cost compared with Transit Gateway. However, as the scale and topological complexity of the network expand, the pricing merit of Transit Gateway is magnified.
Evaluate the following configuration of 10 VPCs requiring full mesh connectivity:
VPC Peering: 45 individual peering connections are needed, each incurring separate data transfer costs.
Transit Gateway: 10 attachments to a central Transit Gateway are required, consolidating data-processing charging to a single point.
The Transit Gateway option becomes less expensive when the number of interconnected VPCs exceeds 3 to 4.
Cost Optimization Strategies
Optimizing costs related to AWS Transit Gateway can be accomplished through four key approaches:
Consolidate Attachments: Instead of provisioning individual Transit Gateway instances for each AWS account, leverage AWS Resource Access Manager to share a single Transit Gateway attachment across accounts, thereby reducing the per-attachment cost.
Optimize Data Transfer: Design the routing of traffic to minimize data transfer charges, which are levied by the volume leaving the gateway. When low-latency communication is needed, co-locate frequently interacting Amazon VPCs within the same Availability Zone.
Monitor Traffic Patterns: Regularly analyze VPC Flow Logs in concert with Transit Gateway Network Manager to map traffic flows, allowing for the identification of under-utilized paths that could be refined or eliminated to lower the transit cost.
Right-size Network Architecture: Periodically reassess the interconnectivity requirements of each VPC. If certain VPCs have low-volume, steady-state connections, consider replacing the Transit Gateway attachment with direct VPC peering or VPC endpoints to lower inter-VPC charges.
Practical Use Cases for AWS Transit Gateway
Enterprise Multi-Account Networking: Large companies with multiple AWS accounts. The Transit Gateway consolidates network interconnectivity across accounts and geographical regions. By employing this service, data pathways can be centrally administered, ensuring consistent routing, security, and policies.
Hybrid Cloud Architectures: Transit Gateway serves as a versatile integration node between on-premises data centers and AWS cloud infrastructure. Connectivity can be provisioned via AWS Direct Connect or through IPsec VPN tunnels. Such a topology abstracts the complexities associated with multiple VPN tunnels or Direct Connect public virtual interfaces and yields a single routable domain, thus enhancing the operational simplicity of hybrid cloud designs.
Centralized Security and Monitoring: By positioning security appliances within a dedicated VPC that routes traffic via the Transit Gateway, companies can implement a consistent egress pattern. This approach ensures that all outbound traffic, including east-west datacenter traffic, is inspected for threats and maintains regulatory compliance.
Global Network Architectures: Inter-region Transit Gateway peering facilitates a scalable, low-latency mesh for transcontinental AWS deployments. Global enterprises can enable cross-region service communication with minimal latency and without the overhead of single-region virtual private interconnects. Idle-region peering also provides an active-passive disaster recovery mechanism, permitting companies to execute cross-region failover and data replication without additional capital infrastructure investments.
Getting Started with AWS Transit Gateway
Prior to launching AWS Transit Gateway, conduct a comprehensive evaluation of your network topology and interconnectivity requirements to formulate a robust, scalable configuration. The following phased preparation is recommended:
Document Your Network: Create a detailed inventory of your VPCs, on-premises gateways, whether VPN or Direct Connect, and analyze inter-traffic patterns and bandwidth consumption curves.
Plan Network Segmentation: Articulate explicit communication trajectories and delineate security perimeters to minimize inadvertent peering exposure.
Manage IP Addresses: Allocate globally unique, non-overlapping CIDR blocks to avert silent routing ambiguities and address exhaustion.
Evaluate Bandwidth and Performance: Benchmark latency and throughput for latency-sensitive and throughput-intensive applications, anticipating peak usage scenarios.
Post-deployment, institute a regime of continual performance evaluation, health tracking, and cost monitoring, adjusting routing, attachment counts, or detachment policies to sustain cost-effective operation.
Implementation:
Start Simple: Start with a basic hub-and-spoke architecture interlinking a limited number of VPCs or on-premises gateways, progressively advancing to a more intricate topology as operational familiarity increases.
Use Infrastructure as Code: Use AWS CloudFormation, Terraform, or equivalent orchestration frameworks to codify network constructs, promoting uniformity, repeatable deployment cycles, and rapid failsafe environment redundancy.
Enable Monitoring and Alerts: Activate Amazon VPC Flow Logs and integrate AWS Transit Gateway Network Manager to attain granular visibility. Employ Amazon CloudWatch to define alert thresholds for attachment state changes, throughput deltas, and per-connection data transfer volumes.
Plan for Scalability: Architect route tables and attachment hierarchies with future growth in mind, including anticipated expansions such as additional VPCs, multi-region interconnects, or increased on-premises link bandwidth.
Conclusion
AWS Transit Gateway streamlines cloud networking through a resilient hub-and-spoke topology that delivers scalability, fortified security, and fiscal efficiency, making it well-suited for multifaceted virtual environments. Pricing requires methodical analysis, yet the cumulative operational advantages frequently surpass initial expenditures. Initiate the rollout with a limited number of VPC interconnects and expand sequentially, thereby consolidating administrative overhead and reinforcing security posture.
For intricate architectures, engage AWS Professional Services to embed proven design principles and circumvent common misconfigurations. Rationalize your topology and realize enhanced operational agility by adopting AWS Transit Gateway.
